Arduino Uno vs. Nano vs. Mega: Finding Your Perfect Microcontroller Match

By Muhammad Mirza, Founder of Embedded Edge Academy

You are standing in front of a robotics project with sensors all over the place, like puzzle pieces. A big question keeps coming up: "Which Arduino board is right for ME?"

As an electronics engineer who has helped hundreds of students go from being confused to understanding, I have to admit that there is no one "best" board. The best Arduino for you depends on the size, goals, and hidden challenges of your project. Let's figure this out together.

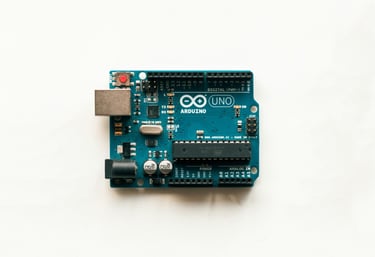

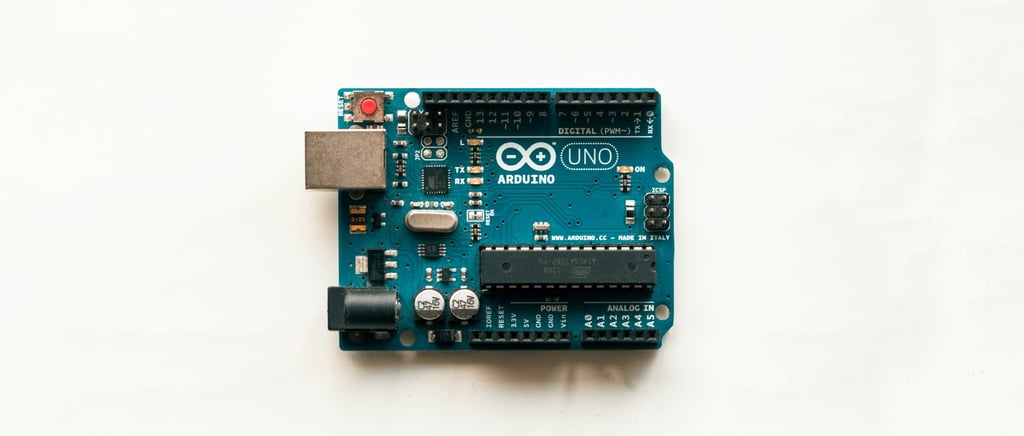

Chapter 1: The Arduino Uno – Your First Love

Think of the Arduino Uno as the wise, patient teacher who taught generations how to walk. With a standard frame size of 68.6mm x 53.4mm, its wide shoulders give beginners plenty of room to plug in wires without shaking hands. Under that famous blue PCB is an ATmega328P brain that runs at 16MHz and is very simple.

The Uno can handle projects that ask for quiet things, like a garden lamp that turns on when the light hits it, an alarm that goes off when someone moves, or a candy dispenser that moves with a servo. It has 14 digital pins (6 of which can do PWM) and 6 analog inputs. You can charge it with a USB cable or a 7-12V barrel jack. No strange power rituals are needed.

Why you will value it:
The Uno overlooked Saqib's miswired sensors when he constructed his first solar tracker as one of our academy students. Troubleshooting LEDs were illuminated by its error-resistant design, which led him home like breadcrumbs. It's the safety net that lets you fall without fear for less than $25.

"Confidence is born in the Uno."

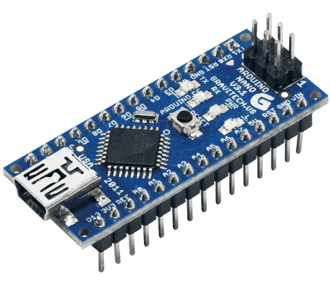

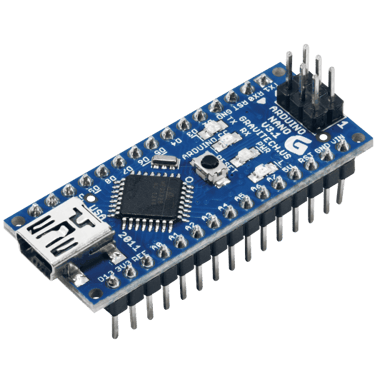

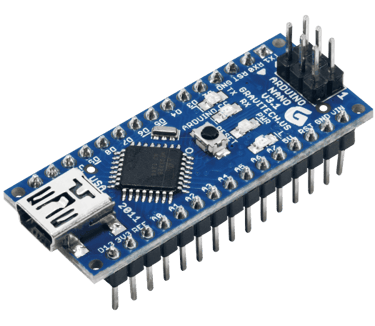

Chapter 2: The Arduino Nano – The Silent Genius

Now reduce that power to a dynamo the size of a matchbox. The Arduino Nano, which is only 18 x 45 mm, has the same ATmega328P heart as the Uno but gives up elbow room to be more discrete. With 14 digital pins (6 PWM) and 8 analog inputs, each millimeter whispers efficiency—more power in less space.

Solder headers are what give it its magic. The Nano requires commitment, in contrast to the Uno's plug-and-play sockets. Once soldered onto a custom PCB, it becomes the ghost inside your machine. It can be hidden inside hydroponic controllers, woven into smart jackets that track heart rates, or invisible in drones flying over Margalla Hills.

Where it excels: Beneath the walnut veneer of Fatima's award-winning smart chessboard was a Nano. It powered 64 LED squares and pressure sensors for less than $12, proving that big ideas come from tiny boards.

"Those who dream in millimeters will love the Nano."

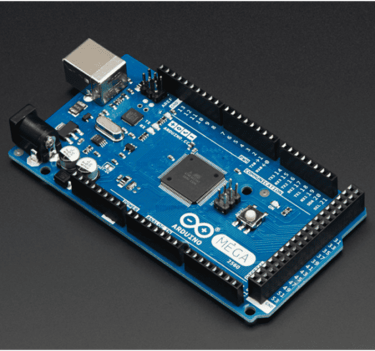

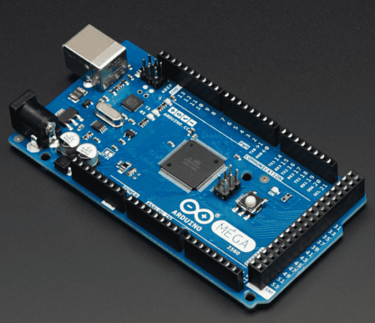

Chapter 3: The Arduino Mega 2560 – The Titan

Introducing the Mega 2560, the Hercules of microcontrollers, for when your project surpasses polite specifications. The ATmega2560 chip, which quadruples the Uno's memory, is housed within its expansive 101 x 53 mm landscape. Look at its four UART ports for simultaneous chatter, 16 analog inputs, and 54 digital pins (15 PWM).

This is the industrial symphonies board:
1- Using five stepper motors to control 3D printers
2- Automated farms using sensor arrays
3- LED matrices that are animated and cover whole walls

The unvarnished truth:

Hamza started with an Uno to create their smart greenhouse prototype. The Mega saved his life when it choked on 30 weather modules and soil sensors. It's the link between a hobby and a career, costing $35 to $40.

"The Mega asks 'how many' instead of 'if.'"

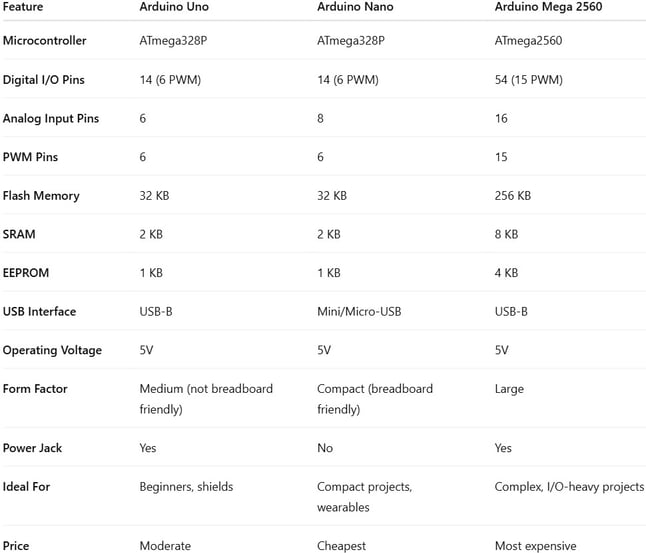

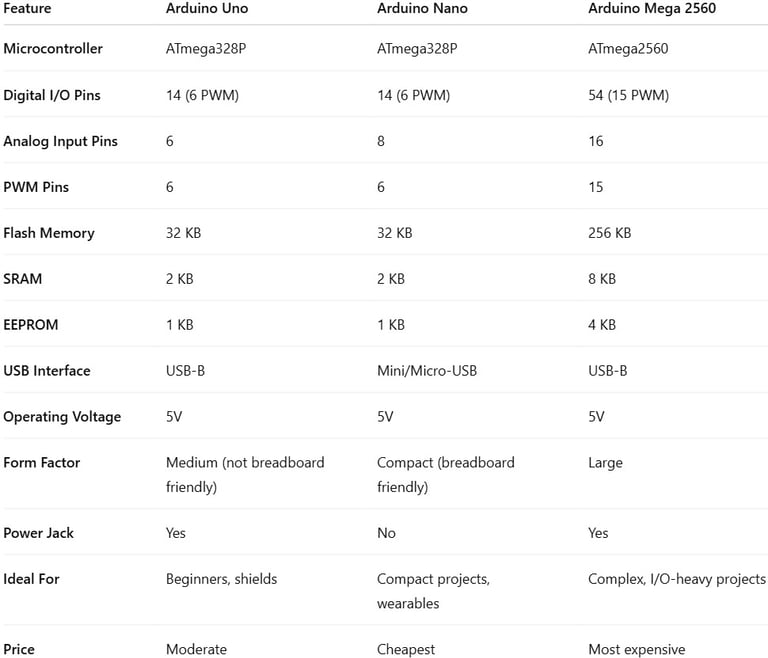

The Deeper Comparison: Beyond Spec Sheets

My Workshop Wisdom: Choose Like an Engineer

After teaching at Embedded Edge Academy, I guide students through three questions:

1. "What’s your project’s heartbeat?"

   • 1-10 sensors → Uno

   • 1-10 sensors → Nano (if space-bound) or Mega (if complex)

   • 30+ sensors → Mega

2. "Where will it live?"

   • Backpacks/pockets? Nano

   • Desks/classrooms? Uno

   • Factories/walls? Mega

3. "What’s your skill courage?"

   • Soldering newbie? Uno

   • Ready to miniaturize? Nano

   • Craving industrial scale? Mega

Golden Insight: All Arduinos speak C++. Master programming fundamentals in our course, and switching boards becomes a joyful detour – not a roadblock.

Your Next Step: From Analysis to Action

Still on the fence? Take a fact from my laboratory: Dream big, start small.

1- Learn electronics grammar with an Uno.
2- Use Nano's portability to scale projects.
3- Give your masterpiece to the Mega.

Since real engineers adapt tools to visions rather than visions to tools, we at Embedded Edge Academy embrace all three starting from Arduino Uno in our Arduino Microcontroller Course.

👉 [Enroll in Our Arduino Course Now to Build Your Future]

May your circuits glow and your code run clean,
Muhammad Mirza
Founder, Embedded Edge Academy

P.S. Tell us about your ideal project below! Personally, I'll recommend the ideal board along with some introductory advice.
